How to Fold & Unfold Gotrax Scooter Easily (Step-by-Step)

This post may contain affiliate links. If you make a purchase through these links, We may earn a commission, at no additional cost to you. We only recommend products and services we believe in.

Bought your new Gotrax scooter but you aren’t sure how to unfold it. Look no further! In this guide, I will walk you through the step-by-step process of unfolding your scooter.

I’ll give you basic understanding of scooter’s components, step-by-step instructions to unfold and fold your scooter according to your Gotrax Model properly(incl GXL V2 and KS2). Along the way, I’ll discuss the benefits of the folding mechanism, the adjustment of the handlebars, and safety instructions.

A quick answer to unfolding the scooter is releasing the folding locks and latches, unfolding the handlebars gently, using the lever in some scooters, and securely lock it in its correct upright position with the folding lock after adjusting the height of handlebars. The process of folding is the complete reverse of these steps.

Below we will dive into more detailed and step-by-step instructions.


Check out this All-Rounder Scooter as a Replacement!

Coupon Code Discount !

EMOVE Cruiser S Electric scooter

Value For Money, Affordable, Convenient & Very Customizable. Long Range & Security Concerned!

33 mph Top Speed, 62-mile Range, 56 lbs, max load 352 lbs, IPX6 Water rating, Foldable, Hybrid Hydraulic brakes, tubeless tires, LCD Display, Key Start ignition, Turn signals, Custom Throttles, Plug-and-Play cabling, 9-12 hours Charge Time.

Use Coupon Code “SCOOTERINSIGHTS” for Free DISCOUNT !!


Preparations for Unfolding/Folding Gotrax Scooter

a. Understanding the Key Components

To optimize your Gotrax scooter experience, it’s crucial to grasp its vital components.

The handlebars serve as the rider’s control interface, equipped with accelerators and brakes, enabling steering.

The stem connects the handlebars to the scooter’s frame, folding inward during the process.

Some models feature a tiller base folding, while others have folding hinge as a pivotal point.

Both types utilize a folding latch on the stem under the display screen, clamping into a buckle on the fender for secure folding.

b. Understanding different Types of Folding

Tiller-Based Mechanism: The first type employs the base of the tiller as the pivotal point for folding and includes models like G3, G4, Eclipse, GMAX, GMAX Ultra, and G Pro. A folding latch at the top of the tiller secures it to the fender when folded.

Folding Hinge Mechanism: The second type features a folding hinge, a 45-degree part connecting the tiller and the deck board, near the front wheel, as a pivotal point for folding. This mechanism can be found in models like GXL V2, Rival, Apex, Apex LE, XR series, XR Elite Max, and G3 Plus. It incorporates a safety pin for movement control and a folding latch for tilting/folding.

KS2’s User-Friendly Knob: The KS2 kids scooter introduces a unique third type of folding, facilitated by a convenient folding knob near the handlebar.


Safety precautions while Folding/ Unfolding the Scooter

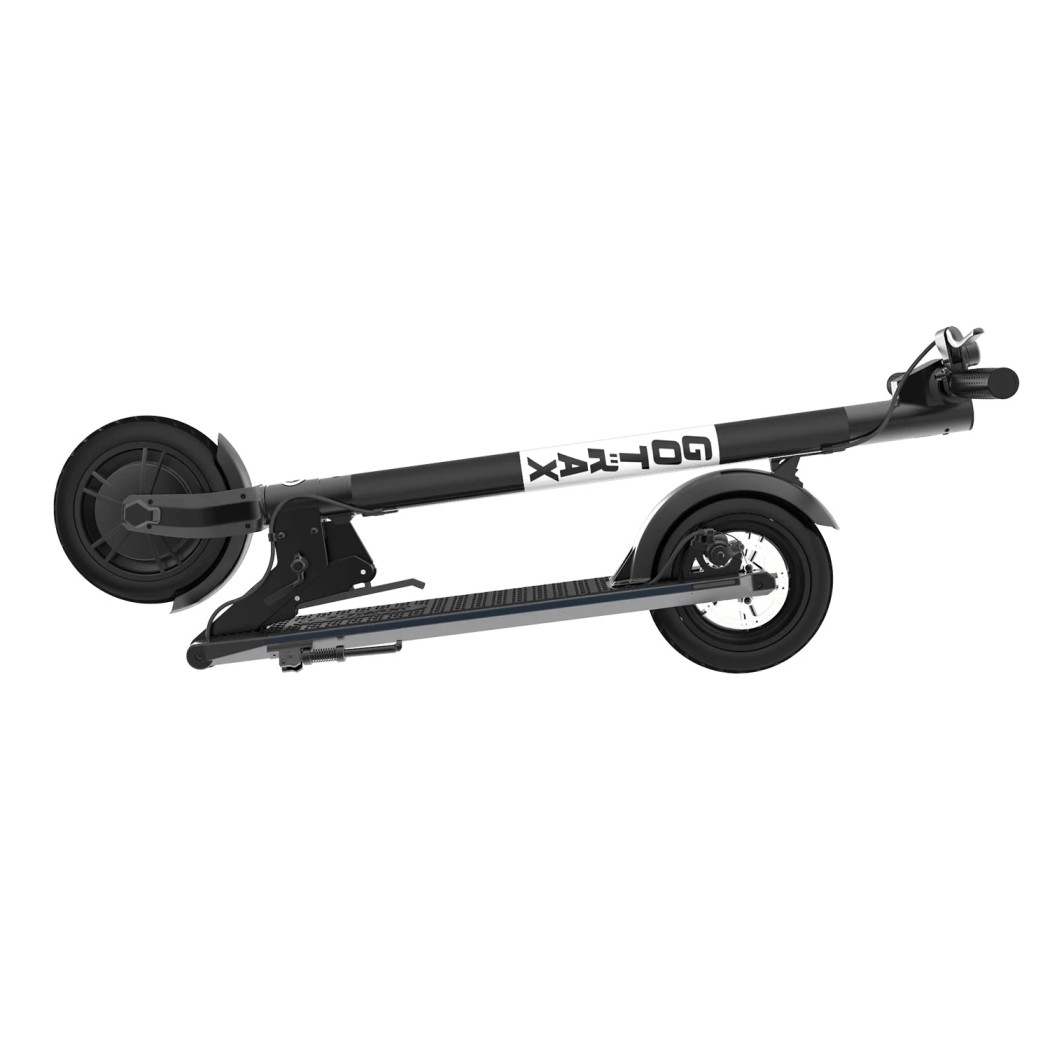

Folded Gotrax Scooter

  • Start the unfolding process on a flat and stable surface.

  • Unfold the scooter in an open space free from other obstacles to avoid damaging the scooter during process.

  • Check for damaged movable and foldable parts before unfolding.

  • Also read the manufactutrers guidelines related to unfolding.

  • Use both hands while unfolding so scooter can be unfolded smoothly.

  • Especially if you are inexperienced, do not use excessive force to unfold the scooter, as it may cause damage to the folding mechanism or other parts.

  • Securely lock and unlock the scooter, making sure that its done perfectly.

Afterwards, you are ready to unfold the scooter.


How to Unfold Gotrax Scooter: Step-by-Step Guide

1. Preparation

Place the scooter at a flat, rigid surface to unfold easily. Remove any additional accessories on the scooter to help unfolding.

2. Tiller-Based Unfolding

To unfold Gotrax G3, G4, Eclipse, GMAX, GMAX Ultra and G Pro, follow these steps

Unlock/ Unclamp the Fender Lock/ Buckle

Release the folding lock by unclamping the folding latch attached with the tiller from the buckle at the fender or mudguard of rear wheel so the handlebars can be pushed up and unfolded.

Gently Unfold the Handlebars

With one hand on the handlebarss and the other on the deck, gently lift the handlebarss upwards and away from the deck. As you lift, the handlebarss along with their stem will rise to their upright position.

Ensure Proper Alignment

Check for the alignment of handlebars according to the front wheel properly. Misalignment isn;t safe and handling becomes difficult.

Identify the Folding Mechanism

Locate the folding mechanism on your scooter. The folding mechanism/ lock is located at the pivotal point (base of stem/tiller). It has a folding lock / locking lever having a silver tab/ switch on it as an additional safety feature.

Engage the Folding Lock

By pushing the silver tab upwards, the lock will be free to move. Engage the lock firmly on the tiller so it locks in its place at an upright position.

Top Pick

Gotrax Scooter Charger

unfold gotrax scooter
42V 2A Charger Replacement for Electric Scooter Compatible with GOTRAX GXL V2, G2, G3, G4, Apex, Glider, XR Elite, XR Ultra 36V Lithium-ion Battery

3. Folding-Hinge Unfolding

To unfold GXL V2, Rival, Apex, Apex LE, XR Ultra, XR Elite, XR Elite Max, G3 Plus, follow these steps.

Remove the Safety Pin

Remove the safety pin from the folding hinge/ hinge bracket, so the scooter becomes foldable/ unfoldable. The safety pin is a small pin located at the left side of the hinge bracket, near the front wheel.

Unlock the Fender Lock

To begin, unlock the folding feature by loosening the latch that connects the handlebars to the buckle on the fender or mudguard of the rear wheel. This allows you to lift the handlebars and unfold them.

Gently Raise the Handlebars

With one hand on the handlebars and the other on the scooter’s deck, gently lift the handlebars upwards and away from the deck. As you do this, both the handlebars and their stem will move up to their upright position.

The folding hinge and the folding lever will also get to its position. The folding lever is only used to fold the scooter, not unfolding.

Ensure Proper Alignment

In these scooters, you don’t need to worry much about the alignment as the tiller tilt at the same alignment.

Lock using Safety Pin

When properly unfolded, lock the the tiller in the place by placing the safety pin back in its original position near the front wheel.

4. Knob-Based Unfolding

To unfold KS2 scooter, follow these steps.

Unlock/ Unclamp the Fender Lock/ Buckle

Release the folding lock by unclamping the folding latch attached with the tiller from the buckle at the fender or mudguard of rear wheel so the handlebars can be pushed up and unfolded.

Gently Raise the Handlebars

With one hand on the handlebars and the other on the deck, gently lift the handlebars upwards and away from the deck. As you do this, the handlebars and stem will rise to their upright position.

Check Handlebar Alignment

Ensure that the handlebars are correctly aligned with the front wheel. Misalignment can affect stability and control.

Engage the Folding Lock

Locate the folding knob near the base of tiller. Push the folding knob towards the handlebar to lock the folding mechanism.

5. Adjusting the handlebars Height (If Applicable)

Once you have unfolded the scooter, you should know that you can also adjust the handlebars’s height using clamps or levers for your convenience. It gives you comfort while you are on the road. To adjust, look for the the locking mechanism at the stem of handlebarss. There should be a clamp or lever which holds the position of the stem .

6. Check for Stability

Don’t just start riding your scooter. Check for the stability of scooter by giving it a gentle shake and manually moving it to make sure that the scooter is unfolded correctly and firmly.

7. Ready to Ride

Once the scooter is unfolded, adjusted, and checked for safety, it is ready for use. Enjoy your ride safely and fold the scooter in the future correctly.


How to Fold Gotrax Scooter: Step-by-Step Guide

1. Tiller-Based Folding

To fold Gotrax G3, G4, Eclipse, GMAX, GMAX Ultra and G Pro, follow these steps

Identify the Folding Mechanism

Locate the folding mechanism on your scooter. The folding mechanism/ lock is located at the pivotal point (base of stem/tiller). It has a folding lock / locking lever having a silver tab/ switch on it as an additional safety feature.

Release the Folding Lock

By pushing the silver tab upwards, the lock will be free to move. Release the lock by pushing it away from the tiller.

Gently Fold the Handlebars

With one hand on the handlebarss and the other on the deck, gently fold the handlebars downwards and towards the deck until it reaches the fender.

Clamp the Fender Lock/ Buckle

Lock the folding lock at the fender by clamping the folding latch attached with the tiller into the  buckle at the fender or mudguard of rear wheel. This is done by opening the latch, putting the latch inside the buckle and then closing the latch.

2. Folding-Hinge Unfolding

To unfold GXL V2, Rival, Apex, Apex LE, XR Ultra, XR Elite, XR Elite Max, G3 Plus, follow these steps.

Remove the Safety Pin

Remove the safety pin from the folding hinge/ hinge bracket, so the scooter becomes foldable/ unfoldable. The safety pin is a small pin located at the left side of the hinge bracket, near the front wheel.

Pull the Folding Lever & Fold the Handlebars

With one hand on the handlebars and the other on the folding lever, pull them downwards towards the deck. As you do this, both the handlebars and their stem will fold to their accurate  position.

Lock at the Fender

Lock the folded postion by locking it at the fender buckle. You may hear a click sound.

Lock using Safety Pin

When properly folded, lock the the tiller in the place by placing the safety pin back in its folded position near the front wheel.

3. Knob-Based Folding

To unfold KS2 scooter, follow these steps.

Release the Folding Lock

Locate the folding knob near the base of tiller. Push the folding knob away from the handlebar to lock the folding mechanism.

Gently Fold the Handlebars

With one hand on the handlebars and the other on the deck, gently lift the handlebars towards the deck. As you do this, the handlebars and stem will fold to their right position.

Lock at the Fender

Engage the folding lock by at the fender to lock in the folded position.


Benefits of the Gotrax Scooter’s Folding Feature

Portability

By folding the scooter, it becomes portable. As many e-scooters are lightweight you can carry them along with you using the folding feature and transport it along with you in a car, train or a bus.

Easy Storage

The folding and unfolding of Gotrax scooter allows easy and compact storage of the scooter. It takes minimal space and can be meatly stored in a closet, under a table or in a corner.

Fixing common folding issues of Gotrax Scooter

Conclusion

Unfolding and folding your Gotrax scooter like a pro is now a breeze with our step-by-step guide.

Whether you own a GXL V2, KS2, G3, G4, G3 Plus, Apex, Rival, Ultra, Eclipse, G Pro or GMAX, we’ve got you covered. Our comprehensive instructions, safety precautions, and insights into different folding mechanisms ensure a smooth experience.

By following this how-to guide, you’ll unleash the full potential of your scooter’s portability and storage convenience.


FAQs

  • How do you operate the folding feature on a Gotrax scooter?

    To utilize the folding feature, start by releasing the folding lock or latch, often found on the mudguard or fender. Then, gently lift the handlebars to unfold them. For folding, reverse this process by securing the folding lock and collapsing the scooter’s stem.

  • Why is my electric scooter not folding?

    Electric scooter may not fold due to tight stem, false adjustment of locking clamp, resistance in pivot points and folding mechanism by accumulation of dust and debris. Read our guide above to troubleshoot folding issues.
